High-capacity X-Ray Scanner

Large-scale security scanning with international certification

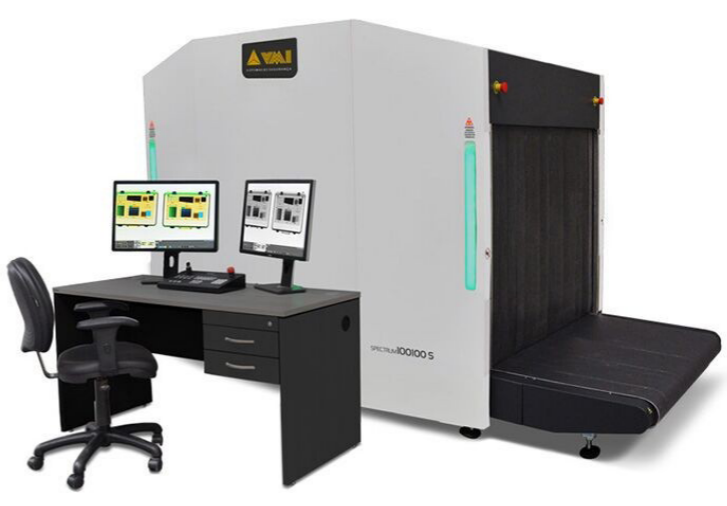

High-capacity X-Ray Scanner

The TFx 100100SV is a high-capacity X-ray scanner designed to deliver fast, reliable inspections of cargo and large baggage, with certification from international airports and security agencies.

Engineered to meet the needs of environments requiring the non-intrusive inspection of items of all sizes, it’s suited for airports, prisons, customs facilities, logistics hubs, carriers, and parcel service providers.

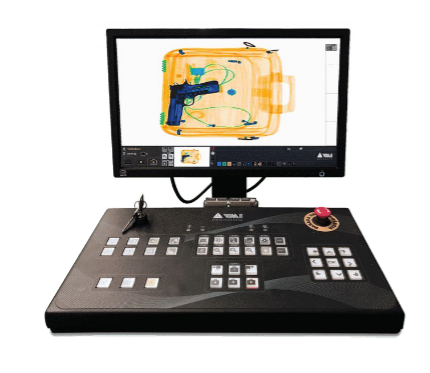

High-capacity X-Ray Scanner(2)

The TFx 100100SV features:

  • Integration with the Garrett metal detector portal
  • Compatible with all Spectrum security systems
  • Remote monitoring software for real-time oversight
  • Built-in suspicious image reanalysis tools
  • ONVIF-approved
  • Onboard video monitoring system
  • Runs on a Linux operating system
  • Fully compatible with Spectrum Bodyscan data and image systems
  • Durable design with high-visibility LED indicators
  • Robust, long-life operation keyboard
  • Interchangeable parts across the Spectrum line for faster maintenance
  • Real-time self-diagnostic system for increased uptime and reliability

Technical Specifications

  • Tunnel Dimensions: 1010 mm (W) x 1010 mm (H)
  • Conveyor Height: 312 mm
  • Maximum Load: 200 kg
  • X-ray Generator: 180kV
  • Zoom: Greater than 128x
  • Display: High-resolution monitor with real-time image manipulation
  • Material Discrimination: Colour-coded imaging - organic (orange), metal (blue), mixed (green)
