Paragon Walk-Through
Metal Detector

Sophisticated & Flexible Detection

Paragon walkthrough metal detector provides enhanced performance and special program selections engineered to meet the varying security requirements of special events, government buildings, mass transit, entertainment venues, loss prevention, zoos, and more.

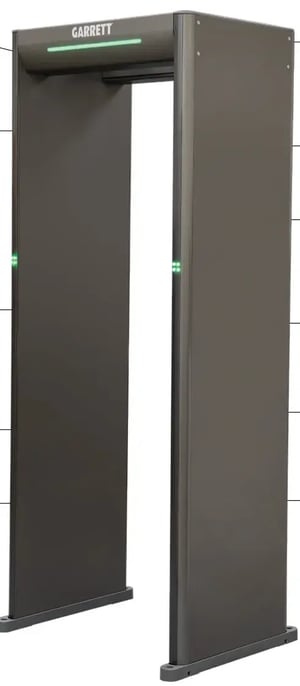

Paragon walkthrough metal detector

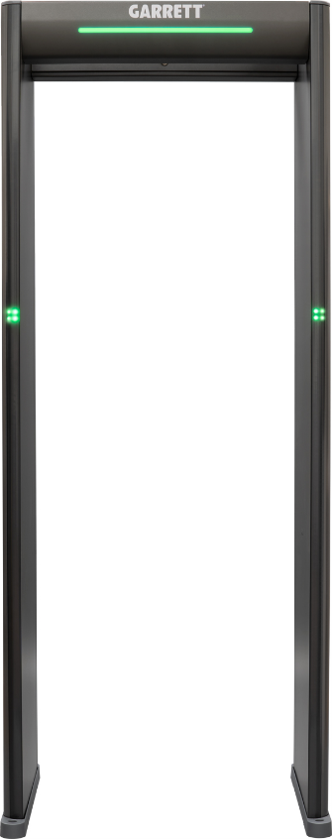

Garret Paragon WTMD

Modern styling designed to complement any security screening environment

The Garrett Paragon is an advanced walk-through metal detector that combines refined design with industry-leading detection performance. Built for high-traffic security environments, the Paragon delivers enhanced sensitivity, superior discrimination, and intelligent screening capabilities for faster, more accurate personnel checks.

Featuring a bright LED display and highly visible zone light arrays on both sides, the Paragon ensures clear visual indication of detected items, even in direct sunlight. Its advanced 66 zone detection architecture, Auto Setup functionality, and tamper-proof circuitry provide exceptional precision, reliability, and ease of operation.

Designed for Faster, Smarter Screening

Designed with user efficiency in mind, the Paragon includes an intuitive menu system that simplifies configuration and day-to-day operation. A built-in 1.5 amp-hour backup battery also provides continued protection during power interruptions or accidental AC disconnection, ensuring uninterrupted security screening when it matters most.

The Garrett Paragon also integrates with our Spectrum X-ray machines, helping operators quickly identify where alerted items have been detected on the body for faster, more efficient screening.

Download Brochure

Certified to International Standards

Paragon Metal Detector walkthrough metal detector key features:

66-Zone Precision

The Paragon’s industry-leading sixty-six zones provide precise location of one or more objects simultaneously.

More Accurate Pinpointing

With more detection zones than any model on the competitive market, the Paragon provides uniform detection and precise pinpointing using independent zone indicators. Lights on both side panels identify not only height but also left, center, and right locations for one or more objects passing through the archway.

Chip Card Capability

NFC (near field communication) card reader allows for adjusting settings of the walkthrough without mechanical

insertion of a card. Less wear on parts with fewer card replacements.

Bluetooth® Capability

Paragon comes equipped with Bluetooth connectivity for wireless communication with other devices.

Adaptive Environmental Interference Cancellation Similar to popular noise canceling headphones, Paragon cancels out electromagnetic interferences and mechanical vibration from the environment.

IP65 Standard

Protects from water and dust ingress into any electronics compartment and provides protection from rain and dust for outdoor operation or storage.

OLED Graphic Display

Allows the use of imagery on the walkthrough menu display.

Auto Sensitivity Selection

Adaptive learning mode to assist in setting an appropriate sensitivity level for your walkthrough based on the user's test object.

Overhead Lightbar Indicator

Unique multi-functional “beacon” LED light that can be used for finding entrances at special events.

Advanced Auto Setup Feature

Used for setting up multiple clusters of walkthroughs quickly and easily while maintaining lineup flexibility.

Multi-brand Compatibility

Can be added to existing checkpoints without having to replace other brand units. Includes multiple channels and 2,300 selectable operating frequencies.

Product specifications

Dimension Overall Exterior Size Shipping Size Weight
Width 30" (0.76 m) Width 35" (0.90 m) Width 35.5" (0.90 m) ~160 lbs. (72.5 kg)
Height 81.5" (2.07 m) Height 87" (2.21 m) Height 91.5" (2.32 m)
Depth 23" (0.58 m) Depth 23" (0.58 m) Depth 6.25" (.16 m)
Features Specification
Temperature Operating on AC: -4o F (-20o C) to +140o F (60o C) Battery operation: 14o F (-10o C) to +140o F (60o C) Humidity to 95% non-condensing Storage: -22o F (-30o C) to 176o F (80o C) Battery storage: -14o F (-10o C) to +176o F (80o C)
Power Fully automatic 100 to 240 VAC, 50 or 60 Hertz, 40 watts; no rewiring, switching or adjustments needed.
Regulatory Information Meets IP 65, IEC 529 Standard for moisture, foreign matter protection
Construction Attractive scratch and mar-resistant laminate. Detection Head and Support: heavy duty aluminum.
Access Control Relay Module provides relay contact via RS 485 cable
Regulatory Information Manage individual or groups of walkthroughs and perform statistical analysis of throughput using iC Module.
Control Output Module connector via RS 485 cable provides NO/NC relay contact
Remote Control Via network with IoT Control Module (iC Module).
Network Manage individual or groups of walkthroughs and perform statistical analysis of throughput.
Alarms Adjustable from 0 to 100 percent.
