Body Scanner X-Ray Machines

Body Scanner X-Ray machines

Scan entire bodies for security checks. The product is widely used in airports, border stations, and government installations.

SpectrumBodyscan_151002en-1920w

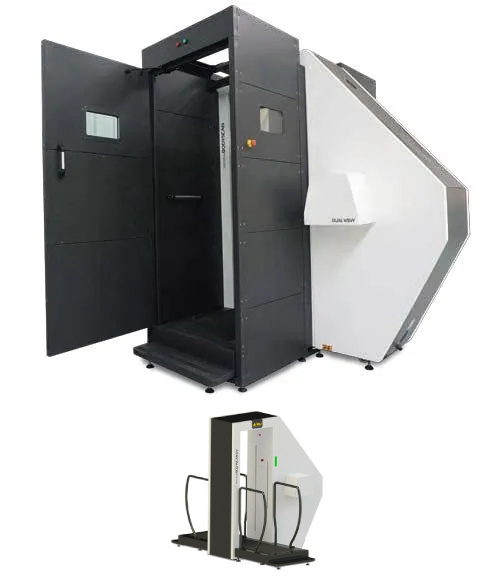

BodyScan SV/DV

The SPECTRUM BODYSCAN SV / DV is able to provide high-level security in accordance with requirements for prisons, airports, border stations, and government installations. Designed with cutting-edge technology, the low dose along with reduced inspection time of just 7 seconds, providing excellent detection inside and outside the inspected body checking illegal objects such as explosives, mobile phones, knives, guns, drugs, metal, and wires.

The Bodyscan solution can be upgraded with radiation shield cabin inspection, dosimeter, intercommunication, and cameras.

Spectrum Flatscan DF-80 SV/DV X-ray machine

The technology SPECTRUM BODYSCAN is implemented in a variety of VMI products and provides an exceptional level of detection, safety and efficiency. SPECTRUM BODYSCAN provides complete security for protection of establishments such as airports, ports, railway stations, prisons, embassies, gold mines/diamonds and government buildings.

SPECTRUM BODYSCAN has double vision technology that delivers higher image quality, increasing reliability in the inspection process.

Download Brochure

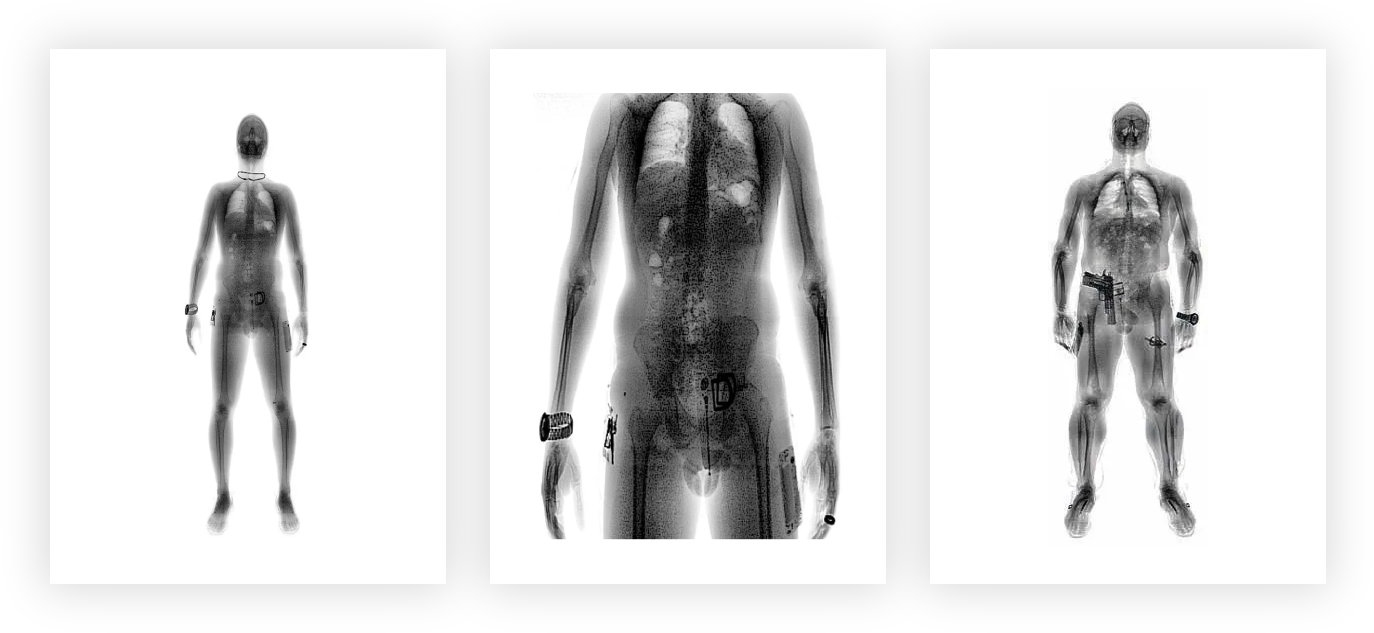

X-ray image properties

  • Image size (full body): 2080mm x 800mm
  • Image Size (abdomen area): 980mm x 800mm
New Project
Feature Specification
Tunnel size 2100mm (A) X 721mm (L)
Weight With cab 900kg - without cab 2592kg
Scanning time 7 seconds
Maximum load weight 200kg
Storage temperature / humidity 40°C to 60°C / 5% to 95% noncondensing
Operating temperature / humidity 0 to 50°C 5% to 95% noncondensing
X-ray tube High resolution with rotating anode
Power supply 127/220VAC, single phase, 50/60 Hz, phase, neutral and ground

Fast security check for body searches

Find out more today

0118 951 9800
image1 (1)-1

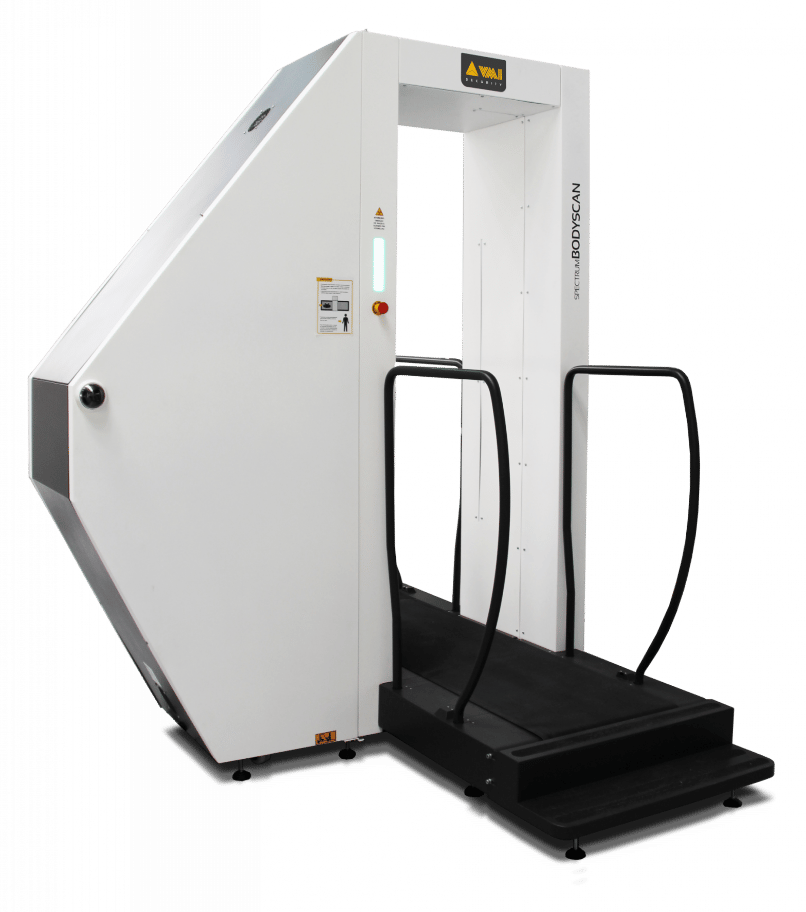

Spectrum BodyScan

Spectrum BodyScan is an advanced security imaging system designed for non-invasive screening in controlled environments. In the UK, comparable systems are used in regulated settings such as prisons and other high-security facilities, where low-dose X-ray body scanning technology is deployed under strict governance to identify concealed contraband on or within the body.

  • Integrated dose control server enabling coordinated radiation management across multiple units
  • Automatic subject-size detection to optimise and minimise X-ray dose exposure
  • Built-in dosimetry for continuous radiation safety monitoring and compliance support
  • Real-time self-diagnostic system to maximise uptime and operational reliability
  • Biometric operator authentication for enhanced security and controlled system access
  • Biometric identification of inspected individuals to improve throughput and traceability
  • Visitor registration system integration for secure workflow management (e.g. custodial environments)
  • Armoured cabin with door-interlock safety sensors to ensure safe operation
  • ONVIF-compatible video streaming for seamless integration with existing CCTV infrastructure
  • Integrated video monitoring support for enhanced situational awareness and oversight
  • Foot-level detection capability for identifying small, concealed items in footwear
  • Secure network image export for audit trails, evidence handling, and centralised storage
