Advanced Cargo Screening Solutions

Modern cargo operations face increasing security challenges, requiring effective screening solutions that can detect threats without disrupting workflow. Our cargo screening systems combine advanced X-ray imaging technology with high-throughput performance to inspect pallets, freight, vehicles, and large cargo quickly and accurately. Whether securing warehouses, distribution centres, ports, or border checkpoints, our solutions help safeguard people, infrastructure, and supply chains against potential risks.

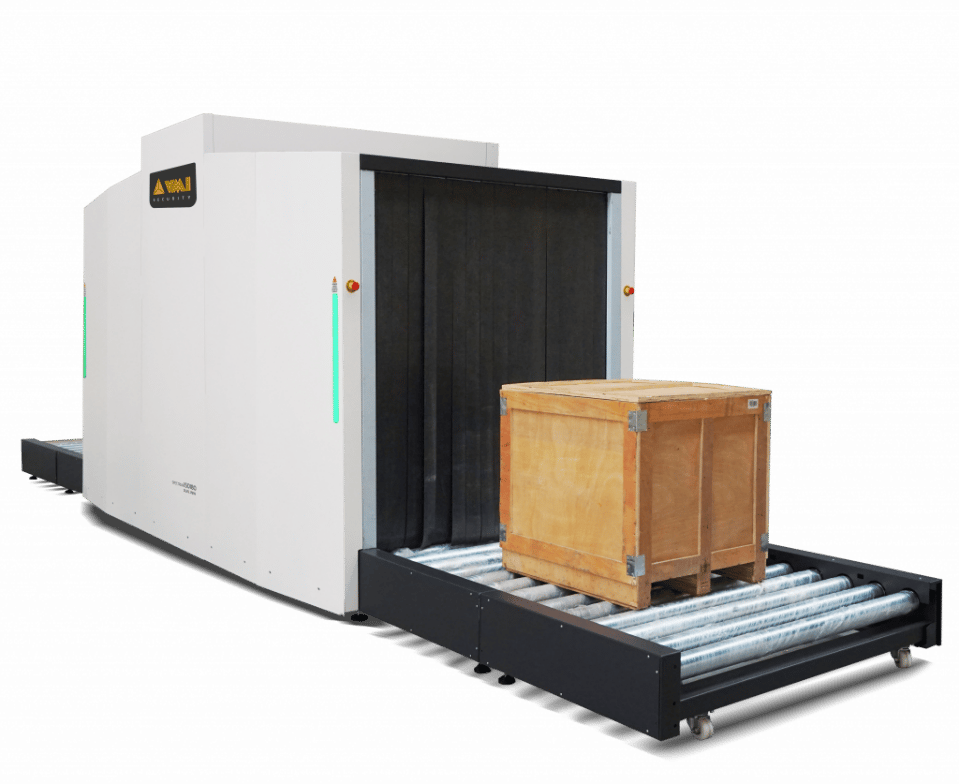

image1 (1)

Spectrum 150180

The Spectrum 150180 delivers high performance, featuring a 1500 × 1800 mm tunnel and a powerful 200 kV generator. It provides strong penetration capability for effective inspection across a wide range of cargo types, producing sharp, high-quality images with clear object recognition.

  • High image quality with 36 AWG wire resolution and 49 mm steel penetration.
  • Complies with international health and safety standards for operators and the public.
  • Automatic detection and alarms for drugs and explosives.
  • Random projection of simulated threat images for operator training (TIP function).
  • Continuous and region zoom functions for easier, more precise image evaluation.
  • Exports images to a USB device in standard file formats, including JPEG, TIFF, and BMP.
  • An ergonomic keyboard and simple operator interface improve efficiency and ease of use.
  • Custom hardware and software can be tailored to meet customer requirements.

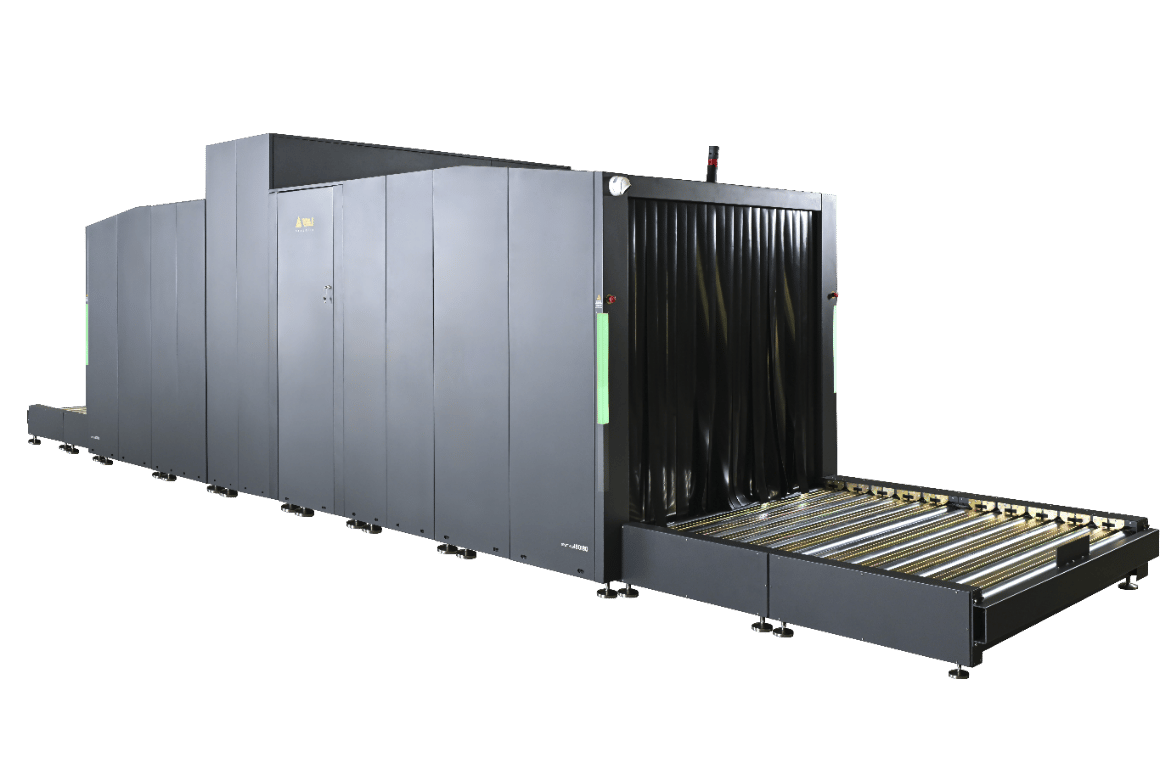

1818 SV Spectrum Pallet Scanner

The Spectrum 180180 SV delivers high performance, featuring a 1800 × 1800 mm tunnel and a powerful 200 kV generator. It provides strong penetration capability for clear object recognition, producing sharp, high-quality images across a wide range of palletised cargo.

Key Features

  • High image quality, with 36 AWG resolution and steel penetration of 48 mm (SV) and 70 mm (DV).
  • No radiological shielding is required, and the equipment complies with international health and safety standards for both operators and the public.
  • Automatic detection and alerts for drugs and explosives.
  • Random projection of simulated threat images for operator training (TIP function).
  • Continuous and local zoom functions for easier, more accurate image evaluation.
  • Exports images in standard formats, including JPEG, GIF, TIFF, and BMP, to USB memory devices. The ergonomic, user-friendly keyboard interface improves operator efficiency and ease of use.
  • Custom hardware and software can be provided to meet customer requirements.
high-qualkity-image-1920w

High quality images

large-inspection-chamber-1920w

Large inspection chamber

diferentiate-between-materials-1920w

Differentiate between materials

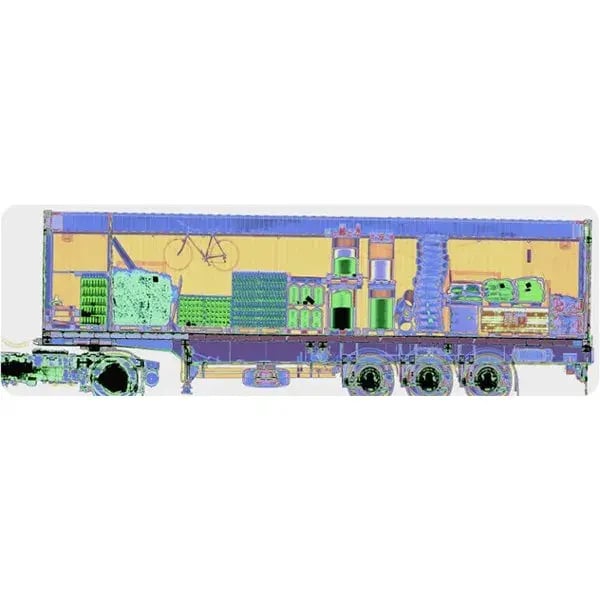

cargo+scan+view-1920w

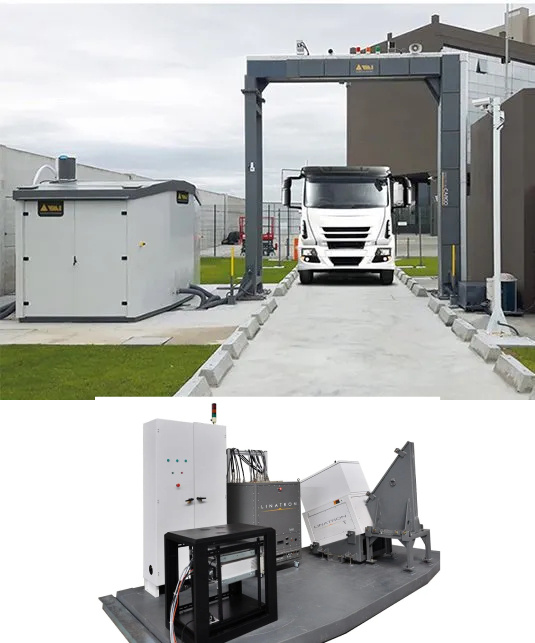

Machine specification for Spectrum Cargo X-Ray Machine
Feature Specification
Speed 3 kph – 15 kph
Maximum vehicle size 2.8m (W) x 4.6m (H) x no limit (L)
Inspection method Drive through
Inspection flow 150 vehicles per hour(Vehicle with a 25m container)
Beam energy 4.5 Mev (Single energy) 6 Mev (Single energy) – 6/4.5 Mev (Dual energy)
Steel penetration 290 mm (4.5Mev); 300mm (6 Mev).
Maximum dose absorbed by driver <0.1 p.sv / inspection

Looking for cargo X-ray machines?

Check entire vehicles with confidence

SPEAK TO US TODAY

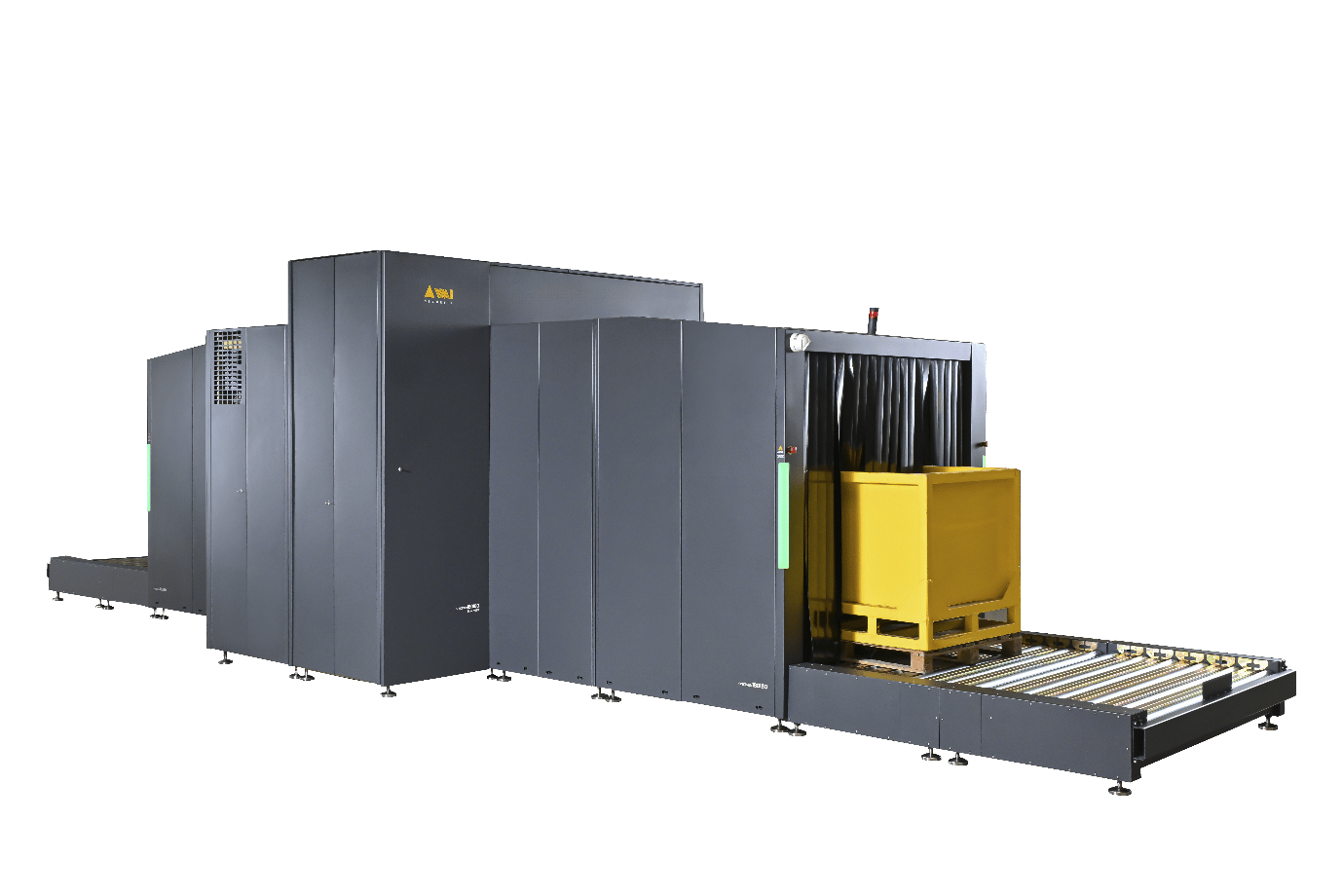

image4 (1)

1818 DV Spectrum Pallet Scanner

The Spectrum 180180 DV delivers high performance, featuring a 1800 × 1800 mm tunnel and two powerful 200 kV generator. It incorporates an automatic threat detection algorithm for enhanced screening efficiency. It is designed for high-security environments, including airports, customs and cargo facilities, transport hubs, and logistics and distribution centres.

  • High image quality, with 36 AWG resolution and steel penetration of 48 mm (SV) and 70 mm (DV).
  • No radiological shielding is required, and the equipment complies with international health and safety standards for both operators and the public.
  • Automatic detection and alerts for drugs and explosives.
  • Random projection of simulated threat images for operator training (TIP function).
  • Continuous and local zoom functions for easier, more accurate image evaluation.
  • Exports images in standard formats, including JPEG, GIF, TIFF, and BMP, to USB memory devices. The ergonomic, user-friendly keyboard interface improves operator efficiency and ease of use.
  • Custom hardware and software can be provided to meet customer requirements.

Certifications: TSA, ONVIF

image3 (1)

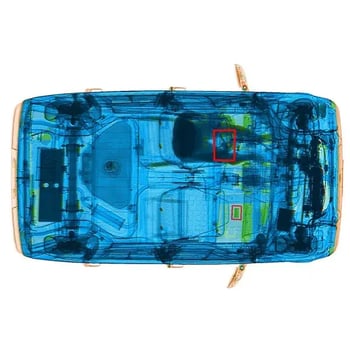

car+x-ray-1920w

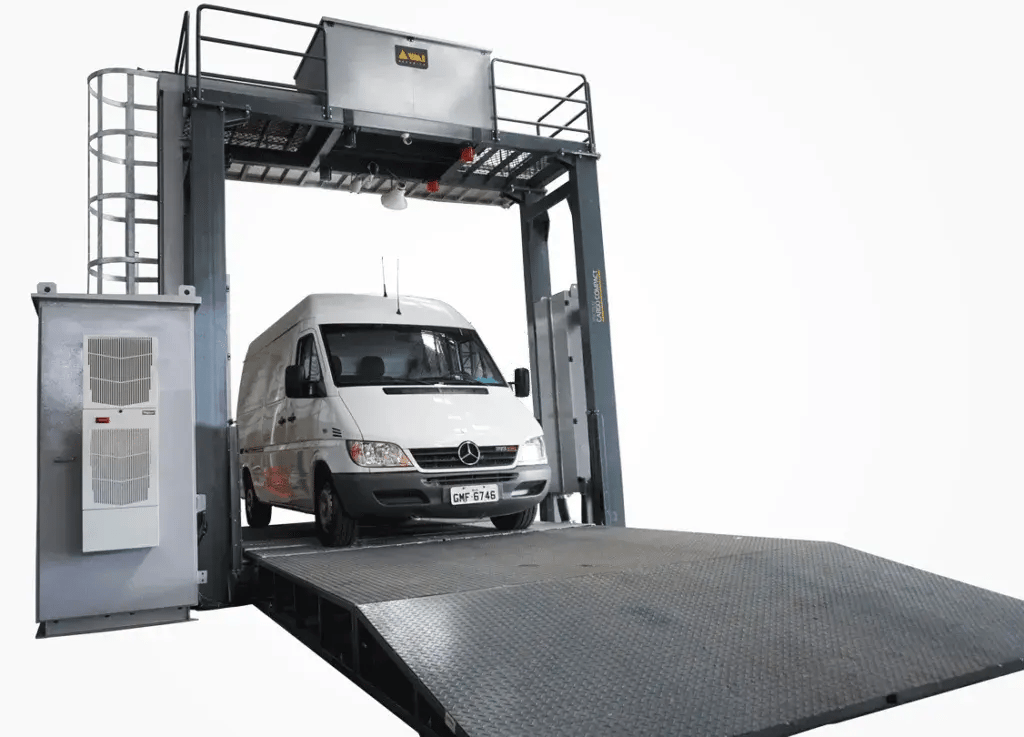

Machine specification for Spectrum Cargo Compact X-Ray Machine
Feature Specification
X-ray source X-Ray tube cooled oil
Speed 4 kph – 15 kph
Maximum vehicle size 3m (W) x 3m (H) x no limit (L)
Inspection method Drive through
Inspection flow 150 vehicles per hour
Energy beam 320kV (200kV optional)
Steel penetration 70 mm (40mm)
Maximum dose absorbed by driver <0.19 uSv (<0.12uSv) inspection at 8 kph

Learn more about security equipment from Twofold Security Solutions

The need to protect your employees and your business from threats has never been stronger.

Twofold have a long history in providing security solutions including X-ray, metal detection and blast security equipment.

We help all types of businesses and organisations to protect themselves against threats to the mailroom, buildings, people, events, luggage and cargo in transit.

Get in touch with Twofold Security Solutions find out how we can help with metal detectors and X-ray machines, just complete the form here.
